# 精尽 Spring MVC 源码分析 —— 请求处理一览
# 1. 概述

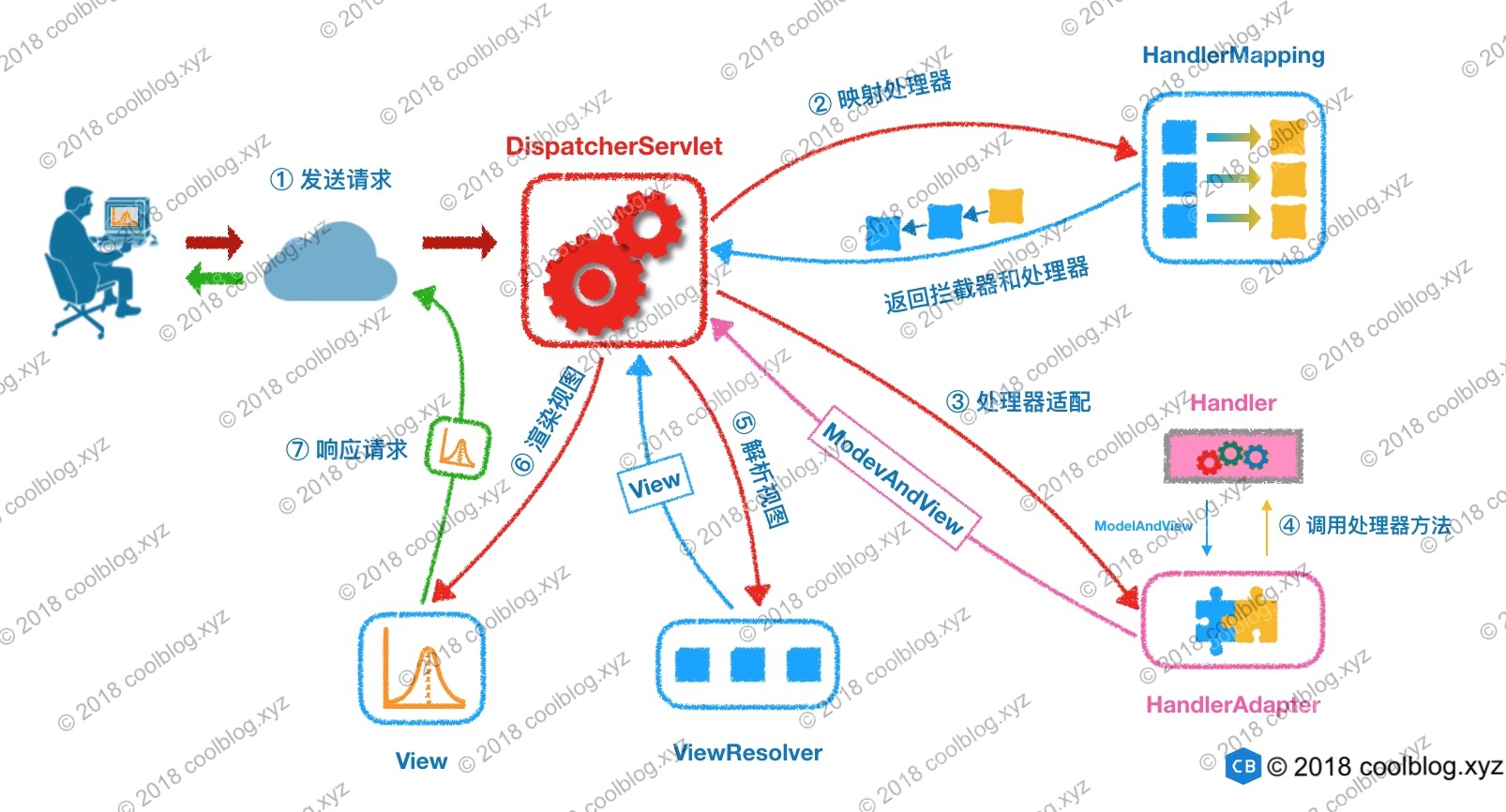

本文，我们来一览一个用户的请求，是如何被 DispatcherServlet 处理的。如下图所示：
> FROM [《Spring MVC 原理探秘 —— 一个请求的旅行过程》](https://www.tianxiaobo.com/2018/06/29/Spring-MVC-原理探秘-一个请求的旅行过程/)
>
> [](https://blog-pictures.oss-cn-shanghai.aliyuncs.com/15300766829012.jpg)
整体流程实际不复杂，但是涉及的**全部**代码会非常多，所以本文重点在于解析**整体的流程**。特别具体和细节的代码实现，我们会放到后续的文章，一篇一篇细细咀嚼。
## 1.1 如何调试
> 艿艿：自我吐槽，写完之后才发现，忘记提供测试示例了。
比较简单，调试 `org.springframework.web.servlet.DispatcherServletTests` 这个单元测试类，可以运行各种单元测试方法，执行各种情况。😈
# 2. FrameworkServlet
虽然在 [「1. 概述」](https://svip.iocoder.cn/Spring-MVC/DispatcherServlet-process-request-intro/#) 的整体流程图，我们看到请求首先是被 DispatcherServlet 所处理，但是实际上，FrameworkServlet 才是真正的入门。FrameworkServlet 会实现
- `#doGet(HttpServletRequest request, HttpServletResponse response)`
- `#doPost(HttpServletRequest request, HttpServletResponse response)`
- `#doPut(HttpServletRequest request, HttpServletResponse response)`
- `#doDelete(HttpServletRequest request, HttpServletResponse response)`
- `#doOptions(HttpServletRequest request, HttpServletResponse response)`
- `#doTrace(HttpServletRequest request, HttpServletResponse response)`
- `#service(HttpServletRequest request, HttpServletResponse response)`
等方法。而这些实现，最终会调用 `#processRequest(HttpServletRequest request, HttpServletResponse response)` 方法，处理请求。
## 2.1 不同 HttpMethod 的请求处理
### 2.1.1 service
`#service(HttpServletRequest request, HttpServletResponse response)` 方法，代码如下：
```
// FrameworkServlet.java
@Override
protected void service(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
// <1> 获得请求方法
HttpMethod httpMethod = HttpMethod.resolve(request.getMethod());
// <2.1> 处理 PATCH 请求
if (httpMethod == HttpMethod.PATCH || httpMethod == null) {
processRequest(request, response);
// <2.2> 调用父类，处理其它请求
} else {
super.service(request, response);
}
}
```
- `<1>` 处，获得请求方法。
- `<2.1>` 处，若请求方法是 `HttpMethod.PATCH` ，调用 `#processRequest(HttpServletRequest request, HttpServletResponse response)` 方法，处理请求。因为 HttpServlet 默认没提供 `#doPatch(HttpServletRequest request, HttpServletResponse response)` 方法，所以只能通过父类的 `#service(...)` 方法，从而实现。另外，关于 processRequest 的详细解析，见 [「2.2 processRequest」](https://svip.iocoder.cn/Spring-MVC/DispatcherServlet-process-request-intro/#) 。
- `<2.2>` 处，其它类型的请求方法，还是调用父类的 `#service(HttpServletRequest request, HttpServletResponse response)` 方法，进行处理。代码如下：
```
// HttpServlet.java
protected void service(HttpServletRequest req, HttpServletResponse resp)
throws ServletException, IOException {
String method = req.getMethod();
if (method.equals(METHOD_GET)) {
long lastModified = getLastModified(req);
if (lastModified == -1) {
// servlet doesn't support if-modified-since, no reason
// to go through further expensive logic
doGet(req, resp);
} else {
long ifModifiedSince = req.getDateHeader(HEADER_IFMODSINCE);
if (ifModifiedSince < lastModified) {
// If the servlet mod time is later, call doGet()
// Round down to the nearest second for a proper compare
// A ifModifiedSince of -1 will always be less
maybeSetLastModified(resp, lastModified);
doGet(req, resp);
} else {
resp.setStatus(HttpServletResponse.SC_NOT_MODIFIED);
}
}
} else if (method.equals(METHOD_HEAD)) {
long lastModified = getLastModified(req);
maybeSetLastModified(resp, lastModified);
doHead(req, resp);
} else if (method.equals(METHOD_POST)) {
doPost(req, resp);
} else if (method.equals(METHOD_PUT)) {
doPut(req, resp);
} else if (method.equals(METHOD_DELETE)) {
doDelete(req, resp);
} else if (method.equals(METHOD_OPTIONS)) {
doOptions(req,resp);
} else if (method.equals(METHOD_TRACE)) {
doTrace(req,resp);
} else {
//
// Note that this means NO servlet supports whatever
// method was requested, anywhere on this server.
//
String errMsg = lStrings.getString("http.method_not_implemented");
Object[] errArgs = new Object[1];
errArgs[0] = method;
errMsg = MessageFormat.format(errMsg, errArgs);
resp.sendError(HttpServletResponse.SC_NOT_IMPLEMENTED, errMsg);
}
}
```
可能会有胖友有疑惑，为什么不在 `#service(HttpServletRequest request, HttpServletResponse response)` 方法，直接调用 `#processRequest(HttpServletRequest request, HttpServletResponse response)` 方法就好列？因为针对不同的请求方法，处理略微有所不同。
### 2.1.2 doGet & doPost & doPut & doDelete
这四个方法，都是直接调用 `#processRequest(HttpServletRequest request, HttpServletResponse response)` 方法，处理请求。代码如下：
```
// FrameworkServlet.java
@Override
protected final void doGet(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
processRequest(request, response);
}
@Override
protected final void doPost(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
processRequest(request, response);
}
@Override
protected final void doPut(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
processRequest(request, response);
}
@Override
protected final void doDelete(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
processRequest(request, response);
}
```
### 2.1.3 doOptions
```
// FrameworkServlet.java
/** Should we dispatch an HTTP OPTIONS request to {@link #doService}?. */
private boolean dispatchOptionsRequest = false;
/**
* Delegate OPTIONS requests to {@link #processRequest}, if desired.
* Applies HttpServlet's standard OPTIONS processing otherwise,
* and also if there is still no 'Allow' header set after dispatching.
* @see #doService
*/
@Override
protected void doOptions(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
// 如果 dispatchOptionsRequest 为 true ，则处理该请求
if (this.dispatchOptionsRequest || CorsUtils.isPreFlightRequest(request)) {
// 处理请求
processRequest(request, response);
// 如果响应 Header 包含 "Allow" ，则不需要交给父方法处理
if (response.containsHeader("Allow")) {
// Proper OPTIONS response coming from a handler - we're done.
return;
}
}
// Use response wrapper in order to always add PATCH to the allowed methods
// 调用父方法，并在响应 Header 的 "Allow" 增加 PATCH 的值
super.doOptions(request, new HttpServletResponseWrapper(response) {
@Override
public void setHeader(String name, String value) {
if ("Allow".equals(name)) {
value = (StringUtils.hasLength(value) ? value + ", " : "") + HttpMethod.PATCH.name();
}
super.setHeader(name, value);
}
});
}
```
- 选读，因为 OPTIONS 请求方法，实际场景下用的少。
- 可参考 [《HTTP 的请求方法 OPTIONS》](https://blog.csdn.net/leikezhu1981/article/details/7402272) 。
### 2.1.4 doTrace
```
// FrameworkServlet.java
/** Should we dispatch an HTTP TRACE request to {@link #doService}?. */
private boolean dispatchTraceRequest = false;
/**
* Delegate TRACE requests to {@link #processRequest}, if desired.
*
Applies HttpServlet's standard TRACE processing otherwise.
* @see #doService
*/
@Override
protected void doTrace(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
// 如果 dispatchTraceRequest 为 true ，则处理该请求
if (this.dispatchTraceRequest) {
// 处理请求
processRequest(request, response);
// 如果响应的内容类型为 "message/http" ，则不需要交给父方法处理
if ("message/http".equals(response.getContentType())) {
// Proper TRACE response coming from a handler - we're done.
return;
}
}
// 调用父方法
super.doTrace(request, response);
}
```
- 选读，因为 TRACE 请求方法，实际场景下用的少。
- 可参读 [《HTTP Method详细解读(`GET` `HEAD` `POST` `OPTIONS` `PUT` `DELETE` `TRACE` `CONNECT`)》](https://www.cnblogs.com/machao/p/5788425.html) 的 [「9.8 TRACE」](https://svip.iocoder.cn/Spring-MVC/DispatcherServlet-process-request-intro/#) 小节。
## 2.2 processRequest
`#processRequest(HttpServletRequest request, HttpServletResponse response)` 方法，处理请求。代码如下：
```
// FrameworkServlet.java
protected final void processRequest(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
// <1> 记录当前时间，用于计算 web 请求的处理时间
long startTime = System.currentTimeMillis();
// <2> 记录异常
Throwable failureCause = null;
// <3> TODO 芋艿
LocaleContext previousLocaleContext = LocaleContextHolder.getLocaleContext();
LocaleContext localeContext = buildLocaleContext(request);
// <4> TODO 芋艿
RequestAttributes previousAttributes = RequestContextHolder.getRequestAttributes();
ServletRequestAttributes requestAttributes = buildRequestAttributes(request, response, previousAttributes);
// <5> TODO 芋艿
WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
asyncManager.registerCallableInterceptor(FrameworkServlet.class.getName(), new RequestBindingInterceptor());
// <6> TODO 芋艿
initContextHolders(request, localeContext, requestAttributes);
try {
// <7> 执行真正的逻辑
doService(request, response);
} catch (ServletException | IOException ex) {
failureCause = ex; // <8>
throw ex;
} catch (Throwable ex) {
failureCause = ex; // <8>
throw new NestedServletException("Request processing failed", ex);
} finally {
// <9> TODO 芋艿
resetContextHolders(request, previousLocaleContext, previousAttributes);
// <10> TODO 芋艿
if (requestAttributes != null) {
requestAttributes.requestCompleted();
}
// <11> 打印请求日志，并且日志级别为 DEBUG
logResult(request, response, failureCause, asyncManager);
// <12> 发布 ServletRequestHandledEvent 事件
publishRequestHandledEvent(request, response, startTime, failureCause);
}
}
```
- `<1>` 处，记录当前时间，用于计算 web 请求的处理时间。
- `<2>` 处，记录异常。
- `<3>` 处，TODO 1001 Locale
- `<4>` 处，TODO 1002 RequestAttributes
- `<5>` 处，TODO 1003 Asyn
- `<6>` 处，TODO 1001 + 1002
- 【重要】 `<7>` 处，调用 `#doService(HttpServletRequest request, HttpServletResponse response)` **抽象**方法，执行真正的逻辑。代码如下：
```
// FrameworkServlet.java
protected abstract void doService(HttpServletRequest request, HttpServletResponse response)
throws Exception;
```
- 该**抽象**方法由 DispatcherServlet 实现，所以这就是 DispatcherServlet 处理请求的**真正入口**。详细解析，见 [「3. DispatcherServlet」](https://svip.iocoder.cn/Spring-MVC/DispatcherServlet-process-request-intro/#) 。
- `<8>` 处，记录抛出的异常，最终在 `finally` 的代码段中使用。
- `<9>` 处，TODO 1001 + 1002
- `<10>` 处，TODO 1001 + 1002
- `<11>` 处，调用 `#logResult(HttpServletRequest request, HttpServletResponse response, Throwable failureCause, WebAsyncManager asyncManager)` 方法，打印请求日志，并且日志级别为 **DEBUG** 。这个方法，感兴趣的胖友，点击 [传送门](https://github.com/spring-projects/spring-framework/blob/master/spring-webmvc/src/main/java/org/springframework/web/servlet/FrameworkServlet.java#L1079-L1132) 查看。
- `<12>` 处，调用 `#publishRequestHandledEvent(HttpServletRequest request, HttpServletResponse response, long startTime, Throwable failureCause)` 方法，发布 `org.springframework.web.context.support.ServletRequestHandledEvent` 事件。代码如下：
```
// FrameworkServlet.java
/** Should we publish a ServletRequestHandledEvent at the end of each request?. */
private boolean publishEvents = true;
private void publishRequestHandledEvent(HttpServletRequest request, HttpServletResponse response,
long startTime, @Nullable Throwable failureCause) {
// 如果开启发布事件
if (this.publishEvents && this.webApplicationContext != null) {
// Whether or not we succeeded, publish an event.
long processingTime = System.currentTimeMillis() - startTime;
// 创建 ServletRequestHandledEvent 事件，并进行发布
this.webApplicationContext.publishEvent(
new ServletRequestHandledEvent(this,
request.getRequestURI(), request.getRemoteAddr(),
request.getMethod(), getServletConfig().getServletName(),
WebUtils.getSessionId(request), getUsernameForRequest(request),
processingTime, failureCause, response.getStatus()));
}
}
```
- 关于 ServletRequestHandledEvent 的监听使用，可参考 [《使用 Spring ApplicationListener 容器监听器来记录请求信息》](https://my.oschina.net/u/2419285/blog/1510163) 。
> 艿艿：好像到了此处，一直没写到 DispatcherServlet 。😈 有种在啰嗦的感觉，嘿嘿。
# 3. DispatcherServlet
## 3.1 doService
`#doService(HttpServletRequest request, HttpServletResponse response)` 方法，DispatcherServlet 的处理请求的入口方法，代码如下：
```
// DispatcherServlet.java
@Override
protected void doService(HttpServletRequest request, HttpServletResponse response) throws Exception {
// <1> 打印请求日志，并且日志级别为 DEBUG
logRequest(request);
// Keep a snapshot of the request attributes in case of an include,
// to be able to restore the original attributes after the include.
// <2> TODO 芋艿
Map attributesSnapshot = null;
if (WebUtils.isIncludeRequest(request)) {
attributesSnapshot = new HashMap<>();
Enumeration attrNames = request.getAttributeNames();
while (attrNames.hasMoreElements()) {
String attrName = (String) attrNames.nextElement();
if (this.cleanupAfterInclude || attrName.startsWith(DEFAULT_STRATEGIES_PREFIX)) {
attributesSnapshot.put(attrName, request.getAttribute(attrName));
}
}
}
// Make framework objects available to handlers and view objects.
// <3> 设置 Spring 框架中的常用对象到 request 属性中
request.setAttribute(WEB_APPLICATION_CONTEXT_ATTRIBUTE, getWebApplicationContext());
request.setAttribute(LOCALE_RESOLVER_ATTRIBUTE, this.localeResolver);
request.setAttribute(THEME_RESOLVER_ATTRIBUTE, this.themeResolver);
request.setAttribute(THEME_SOURCE_ATTRIBUTE, getThemeSource());
// <4> TODO 芋艿 flashMapManager
if (this.flashMapManager != null) {
FlashMap inputFlashMap = this.flashMapManager.retrieveAndUpdate(request, response);
if (inputFlashMap != null) {
request.setAttribute(INPUT_FLASH_MAP_ATTRIBUTE, Collections.unmodifiableMap(inputFlashMap));
}
request.setAttribute(OUTPUT_FLASH_MAP_ATTRIBUTE, new FlashMap());
request.setAttribute(FLASH_MAP_MANAGER_ATTRIBUTE, this.flashMapManager);
}
try {
// <5> 执行请求的分发
doDispatch(request, response);
} finally {
// <6> TODO 芋艿
if (!WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted()) {
// Restore the original attribute snapshot, in case of an include.
if (attributesSnapshot != null) {
restoreAttributesAfterInclude(request, attributesSnapshot);
}
}
}
}
```
- `<1>` 处，调用 `#logRequest(HttpServletRequest request)` 方法，打印请求日志，并且日志级别为 DEBUG 。这个方法，感兴趣的胖友，点击 [传送门](https://github.com/spring-projects/spring-framework/blob/master/spring-webmvc/src/main/java/org/springframework/web/servlet/DispatcherServlet.java#L954-L985) 查看。
- `<2>` 处，TODO 1003 芋艿
- `<3>` 处，设置 Spring 框架中的常用对象到 `request` 的属性中。
- `<4>` 处，TODO 1004 芋艿 flashMapManager
- `<5>` 处，调用 `#doDispatch(HttpServletRequest request, HttpServletResponse response)` 方法，执行请求的分发。详细解析，见 [「3.2 doDispatch」](https://svip.iocoder.cn/Spring-MVC/DispatcherServlet-process-request-intro/#) 。
- `<6>` 处，TODO 1003 芋艿
## 3.2 doDispatch
`#doDispatch(HttpServletRequest request, HttpServletResponse response)` 方法，执行请求的分发。在开始看具体的代码实现之前，我们在来回味下这张图片：

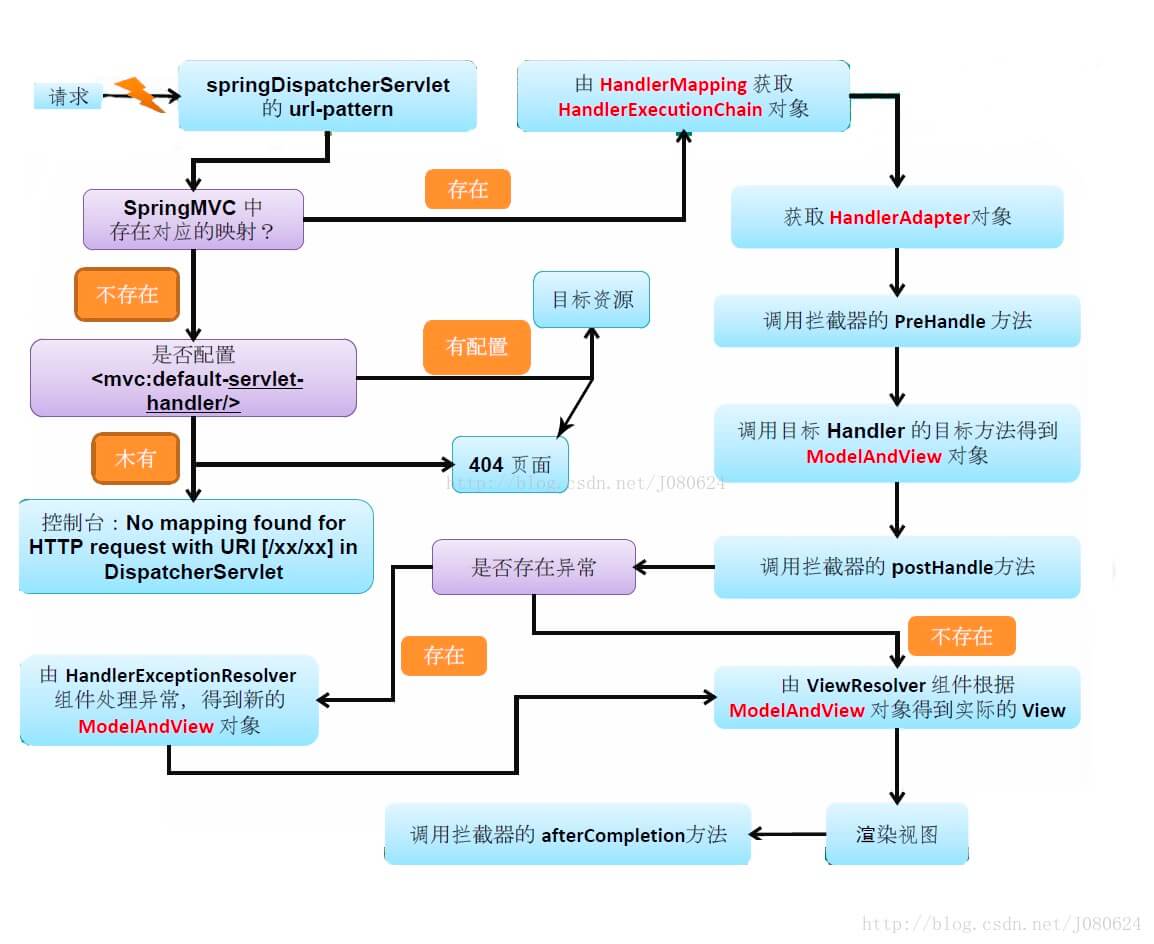

> FROM [《Spring MVC 原理探秘 —— 一个请求的旅行过程》](https://www.tianxiaobo.com/2018/06/29/Spring-MVC-原理探秘-一个请求的旅行过程/)
>

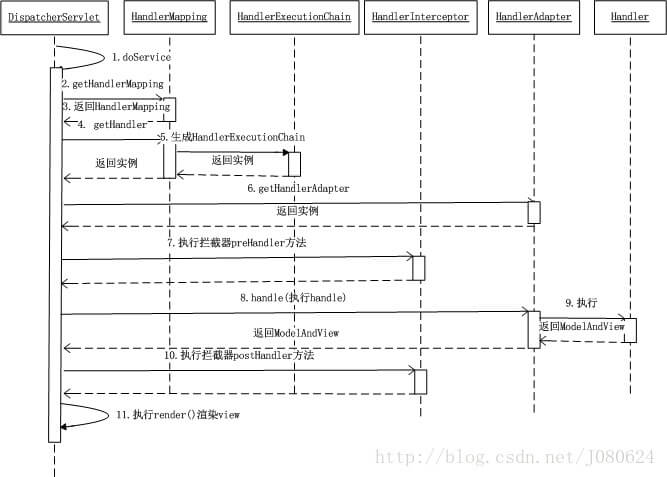

> [](https://blog-pictures.oss-cn-shanghai.aliyuncs.com/15300766829012.jpg)

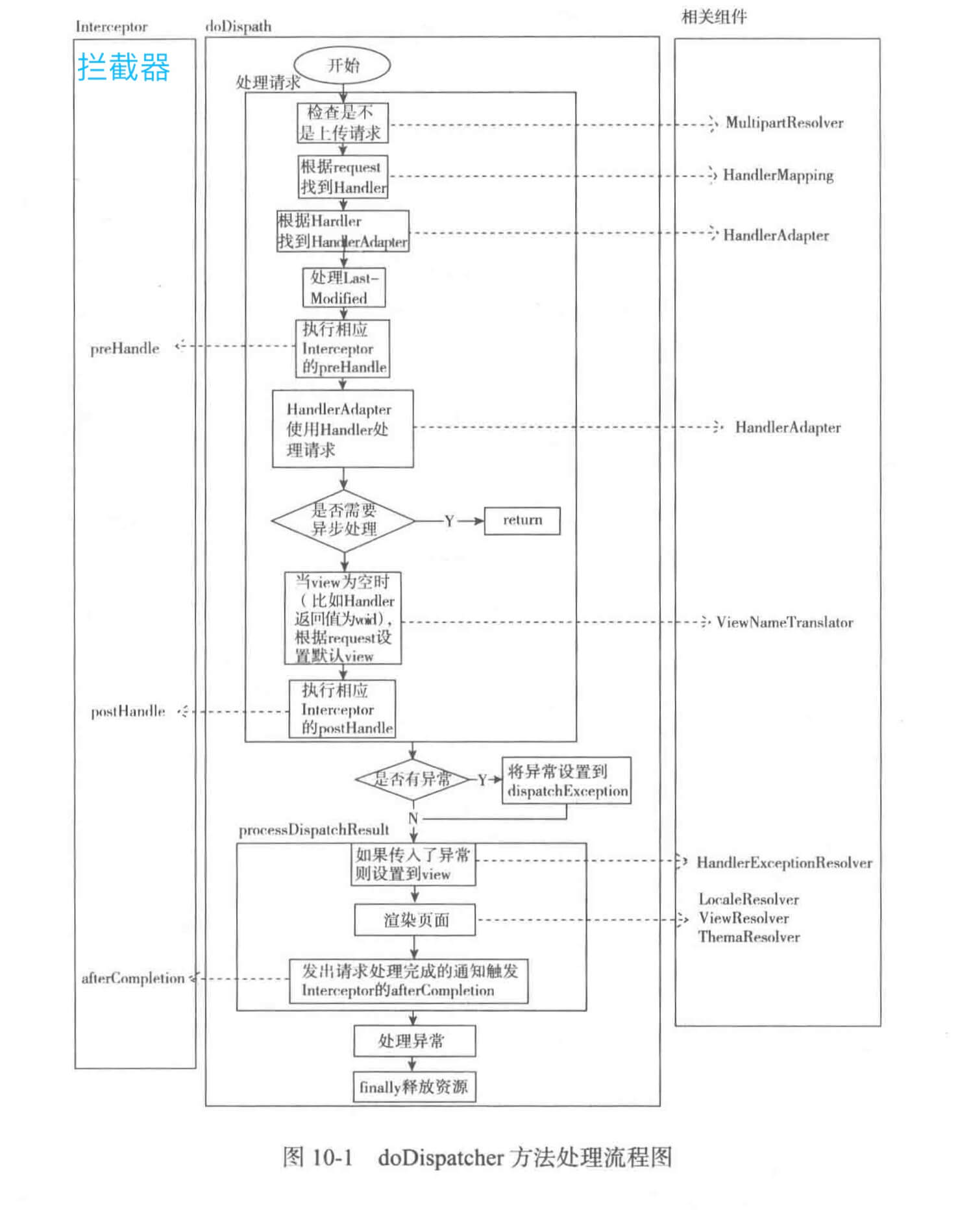

- 实际上，这张图，更多的反应的是 DispatcherServlet 的 `#DispatcherServlet(...)` 方法的核心流程。
代码如下：
```
// DispatcherServlet.java
protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
HttpServletRequest processedRequest = request;
HandlerExecutionChain mappedHandler = null;
boolean multipartRequestParsed = false;
// <1> TODO 芋艿
WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
try {
ModelAndView mv = null;
Exception dispatchException = null;
try {
// TODO 芋艿
processedRequest = checkMultipart(request);
multipartRequestParsed = (processedRequest != request);
// Determine handler for the current request.
// <3> 获得请求对应的 HandlerExecutionChain 对象
mappedHandler = getHandler(processedRequest);
if (mappedHandler == null) { // <3.1> 如果获取不到，则根据配置抛出异常或返回 404 错误
noHandlerFound(processedRequest, response);
return;
}
// Determine handler adapter for the current request.
// <4> 获得当前 handler 对应的 HandlerAdapter 对象
HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());
// Process last-modified header, if supported by the handler.
// <4.1> TODO 芋艿 last-modified
String method = request.getMethod();
boolean isGet = "GET".equals(method);
if (isGet || "HEAD".equals(method)) {
long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
return;
}
}
// <5> 前置处理 拦截器
if (!mappedHandler.applyPreHandle(processedRequest, response)) {
return;
}
// Actually invoke the handler.
// <6> 真正的调用 handler 方法，并返回视图
mv = ha.handle(processedRequest, response, mappedHandler.getHandler());
// <7> TODO 芋艿
if (asyncManager.isConcurrentHandlingStarted()) {
return;
}
// <8> TODO 芋艿 视图
applyDefaultViewName(processedRequest, mv);
// <9> 后置处理 拦截器
mappedHandler.applyPostHandle(processedRequest, response, mv);
} catch (Exception ex) {
dispatchException = ex; // <10> 记录异常
} catch (Throwable err) {
// As of 4.3, we're processing Errors thrown from handler methods as well,
// making them available for @ExceptionHandler methods and other scenarios.
dispatchException = new NestedServletException("Handler dispatch failed", err); // <10> 记录异常
}
// <11> 处理正常和异常的请求调用结果。
processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
} catch (Exception ex) {
// <12> 已完成 拦截器
triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
} catch (Throwable err) {
// <12> 已完成 拦截器
triggerAfterCompletion(processedRequest, response, mappedHandler,
new NestedServletException("Handler processing failed", err));
} finally {
// <13.1> TODO 芋艿，干啥子？
if (asyncManager.isConcurrentHandlingStarted()) {
// Instead of postHandle and afterCompletion
if (mappedHandler != null) {
mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
}
} else {
// <13.2> Clean up any resources used by a multipart request.
if (multipartRequestParsed) {
cleanupMultipart(processedRequest);
}
}
}
}
```
- `<1>` 处，TODO 1003 Async
- `<2>` 处，调用 `#checkMultipart(HttpServletRequest request)` 方法，检查是否是上传请求。如果是，则封装成 MultipartHttpServletRequest 对象。详细解析，见 [《精尽 Spring MVC 源码解析 —— MultipartResolver》](http://svip.iocoder.cn/Spring-MVC/MultipartResolver) 中。
- `<3>` 处，调用 `#getHandler(HttpServletRequest request)` 方法，返回请求对应的是 HandlerExecutionChain 对象，它包含处理器( `handler` )和拦截器们( HandlerInterceptor 数组 )。代码如下：
```
// DispatcherServlet.java
/** List of HandlerMappings used by this servlet. */
@Nullable
private List handlerMappings;
@Nullable
protected HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
if (this.handlerMappings != null) {
// 遍历 HandlerMapping 数组
for (HandlerMapping mapping : this.handlerMappings) {
// 获得请求对应的 HandlerExecutionChain 对象
HandlerExecutionChain handler = mapping.getHandler(request);
// 获得到，则返回
if (handler != null) {
return handler;
}
}
}
return null;
}
```
- 详细的解析，见 [《精尽 Spring MVC 源码分析 —— HandlerMapping 组件（二）之 HandlerInterceptor》](http://svip.iocoder.cn/Spring-MVC/HandlerMapping-2-HandlerInterceptor)
- `<3.1>` 处，如果获取不到，则调用 `#noHandlerFound(HttpServletRequest request, HttpServletResponse response)` 根据配置抛出异常或返回 404 错误。 代码比较简单，胖友点击 [传送门](https://github.com/spring-projects/spring-framework/blob/master/spring-webmvc/src/main/java/org/springframework/web/servlet/DispatcherServlet.java#L1240-L1257) 自己看该方法。
- `<4>` 处，调用 `#getHandlerAdapter(Object handler)` 方法，获得当前 `handler` 对应的 HandlerAdapter 对象。代码如下：
```
// DispatcherServlet.java
/** List of HandlerAdapters used by this servlet. */
@Nullable
private List handlerAdapters;
protected HandlerAdapter getHandlerAdapter(Object handler) throws ServletException {
if (this.handlerAdapters != null) {
// 遍历 HandlerAdapter 数组
for (HandlerAdapter adapter : this.handlerAdapters) {
// 判断是否支持当前处理器
if (adapter.supports(handler)) {
// 如果支持，则返回
return adapter;
}
}
}
// 没找到对应的 HandlerAdapter 对象，抛出 ServletException 异常
throw new ServletException("No adapter for handler [" + handler +
"]: The DispatcherServlet configuration needs to include a HandlerAdapter that supports this handler");
}
```
- 详细解析，见 [《精尽 Spring MVC 源码解析 —— HandlerAdapter 组件（一）之 HandlerAdapter》](http://svip.iocoder.cn/Spring-MVC/HandlerAdapter-1-HandlerAdapter)
- `<4.1>` 处，见 [《精尽 Spring MVC 源码解析 —— HandlerAdapter 组件（一）之 HandlerAdapter》](http://svip.iocoder.cn/Spring-MVC/HandlerAdapter-1-HandlerAdapter)
- 【拦截器】`<5>` 处，调用 `HandlerExecutionChain#applyPreHandle(HttpServletRequest request, HttpServletResponse response)` 方法，拦截器的前置处理，即调用 `HandlerInterceptor#preHandle(HttpServletRequest request, HttpServletResponse response, Object handler)` 方法。详细解析，见 [《精尽 Spring MVC 源码分析 —— HandlerMapping 组件（二）之 HandlerInterceptor》](http://svip.iocoder.cn/Spring-MVC/HandlerMapping-2-HandlerInterceptor) 。
- 【Controller】`<6>` 处，调用 `HandlerAdapter#handle(HttpServletRequest request, HttpServletResponse response, Object handler)` 方法，真正的调用 `handler` 方法，并返回视图。这里，一般就会调用我们定义的 Controller 的方法。详细解析，见 TODO 。
- `<7>` 处，TODO 1003 Asyn
- `<8>` 处，调用 `#applyDefaultViewName(HttpServletRequest request, ModelAndView mv)` 方法，当无视图的情况下，设置默认视图。代码如下：
```
// DispatcherServlet.java
/** RequestToViewNameTranslator used by this servlet. */
@Nullable
private RequestToViewNameTranslator viewNameTranslator;
private void applyDefaultViewName(HttpServletRequest request, @Nullable ModelAndView mv) throws Exception {
if (mv != null && !mv.hasView()) { // 无视图
// 获得默认视图
String defaultViewName = getDefaultViewName(request);
// 设置默认视图
if (defaultViewName != null) {
mv.setViewName(defaultViewName);
}
}
}
@Nullable
protected String getDefaultViewName(HttpServletRequest request) throws Exception {
// 从请求中，获得视图
return (this.viewNameTranslator != null ? this.viewNameTranslator.getViewName(request) : null);
}
```
- 详细解析，见 [《精尽 Spring MVC 源码解析 —— RequestToViewNameTranslator》](http://svip.iocoder.cn/Spring-MVC/RequestToViewNameTranslator) 中。
- 【拦截器】`<9>` 处，调用 `HandlerExecutionChain#applyPostHandle(HttpServletRequest request, HttpServletResponse response, ModelAndView mv)` 方法，拦截器的后置处理，即调用 `HandlerInterceptor#postHandle(HttpServletRequest request, HttpServletResponse response, Object handler)` 方法。详细解析，见 [《精尽 Spring MVC 源码分析 —— HandlerMapping 组件（二）之 HandlerInterceptor》](http://svip.iocoder.cn/Spring-MVC/HandlerMapping-2-HandlerInterceptor) 。
- `<10>` 处，记录异常。**注意**，此处仅仅记录，不会抛出异常，而是统一交给 `<11>` 处理。
- `<11>` 处，调用 `#processDispatchResult(HttpServletRequest request, HttpServletResponse response, HandlerExecutionChain mappedHandler, ModelAndView mv, Exception exception)` 方法，处理**正常和异常**的请求调用结果。注意，正常的、异常的，都会进行处理。详细解析，见 [「3.3 processDispatchResult」](https://svip.iocoder.cn/Spring-MVC/DispatcherServlet-process-request-intro/#) 。
- 【拦截器】`<12>` 处，调用 `#triggerAfterCompletion(HttpServletRequest request, HttpServletResponse response, HandlerExecutionChain mappedHandler, Exception ex)` 方法，拦截器的已完成处理，即调用 `HandlerInterceptor#triggerAfterCompletion(HttpServletRequest request, HttpServletResponse response, Exception ex)` 方法。详细解析，见 [《精尽 Spring MVC 源码分析 —— HandlerMapping 组件（二）之 HandlerInterceptor》](http://svip.iocoder.cn/Spring-MVC/HandlerMapping-2-HandlerInterceptor) 。
- `<13.1>` 处，TODO 1003 Asyn
- `<13.2>` 处，如果是上传请求，则调用 `#cleanupMultipart(HttpServletRequest request)` 方法，清理资源。详细解析，见 [《精尽 Spring MVC 源码解析 —— MultipartResolver》](http://svip.iocoder.cn/Spring-MVC/MultipartResolver) 中。
## 3.3 processDispatchResult
`#processDispatchResult(HttpServletRequest request, HttpServletResponse response, HandlerExecutionChain mappedHandler, ModelAndView mv, Exception exception)` 方法，处理**正常和异常**的请求调用结果。代码如下：
```
// DispatcherServlet.java
private void processDispatchResult(HttpServletRequest request, HttpServletResponse response,
@Nullable HandlerExecutionChain mappedHandler, @Nullable ModelAndView mv,
@Nullable Exception exception) throws Exception {
// <1> 标记，是否是生成的 ModelAndView 对象
boolean errorView = false;
// <2> 如果是否异常的结果
if (exception != null) {
// 情况一，从 ModelAndViewDefiningException 中获得 ModelAndView 对象
if (exception instanceof ModelAndViewDefiningException) {
logger.debug("ModelAndViewDefiningException encountered", exception);
mv = ((ModelAndViewDefiningException) exception).getModelAndView();
// 情况二，处理异常，生成 ModelAndView 对象
} else {
Object handler = (mappedHandler != null ? mappedHandler.getHandler() : null);
mv = processHandlerException(request, response, handler, exception);
// 标记 errorView
errorView = (mv != null);
}
}
// Did the handler return a view to render?
if (mv != null && !mv.wasCleared()) {
// <3.1> 渲染页面
render(mv, request, response);
// <3.2> 清理请求中的错误消息属性
if (errorView) {
WebUtils.clearErrorRequestAttributes(request);
}
} else {
if (logger.isTraceEnabled()) {
logger.trace("No view rendering, null ModelAndView returned.");
}
}
// <4> TODO 芋艿
if (WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted()) {
// Concurrent handling started during a forward
return;
}
// <5> 已完成处理 拦截器
if (mappedHandler != null) {
mappedHandler.triggerAfterCompletion(request, response, null);
}
}
```
- `<1>` 处，`errorView` 属性，标记是否是生成的 ModelAndView 对象。
- `<2>` 处，如果是否**异常**的结果。
- `<2.1>` 处，情况一，从 ModelAndViewDefiningException 中获得 ModelAndView 对象。
- `<2.2>` 处，情况二，调用 `#processHandlerException(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex)` 方法，处理异常，生成 ModelAndView 对象。代码如下：
```
// DispatcherServlet.java
@Nullable
protected ModelAndView processHandlerException(HttpServletRequest request, HttpServletResponse response,
@Nullable Object handler, Exception ex) throws Exception {
// Success and error responses may use different content types
// 移除 PRODUCIBLE_MEDIA_TYPES_ATTRIBUTE 属性
request.removeAttribute(HandlerMapping.PRODUCIBLE_MEDIA_TYPES_ATTRIBUTE);
// Check registered HandlerExceptionResolvers...
// 遍历 HandlerExceptionResolver 数组，解析异常，生成 ModelAndView 对象
ModelAndView exMv = null;
if (this.handlerExceptionResolvers != null) {
// 遍历 HandlerExceptionResolver 数组
for (HandlerExceptionResolver resolver : this.handlerExceptionResolvers) {
// 解析异常，生成 ModelAndView 对象
exMv = resolver.resolveException(request, response, handler, ex);
// 生成成功，结束循环
if (exMv != null) {
break;
}
}
}
// 情况一，生成了 ModelAndView 对象，进行返回
if (exMv != null) {
// ModelAndView 对象为空，则返回 null
if (exMv.isEmpty()) {
request.setAttribute(EXCEPTION_ATTRIBUTE, ex); // 记录异常到 request 中
return null;
}
// We might still need view name translation for a plain error model...
// 设置默认视图
if (!exMv.hasView()) {
String defaultViewName = getDefaultViewName(request);
if (defaultViewName != null) {
exMv.setViewName(defaultViewName);
}
}
// 打印日志
if (logger.isTraceEnabled()) {
logger.trace("Using resolved error view: " + exMv, ex);
}
if (logger.isDebugEnabled()) {
logger.debug("Using resolved error view: " + exMv);
}
// 设置请求中的错误消息属性
WebUtils.exposeErrorRequestAttributes(request, ex, getServletName());
return exMv;
}
// 情况二，未生成 ModelAndView 对象，则抛出异常
throw ex;
}
```
- `` 处，遍历 HandlerExceptionResolver 数组，调用 `HandlerExceptionResolver#resolveException(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex)` 方法，解析异常，生成 ModelAndView 对象。详细解析，TODO
- `` 处，情况一，生成了 ModelAndView 对象，进行返回。当然，这里的后续代码还有 10 多行，比较简单，胖友自己瞅瞅就 OK 啦。
- `` 处，情况二，未生成 ModelAndView 对象，则抛出异常。
- `<3.1>` 处，调用 `#render(ModelAndView mv, HttpServletRequest request, HttpServletResponse response)` 方法，渲染页面。详细解析，见 [「3.4 render」](https://svip.iocoder.cn/Spring-MVC/DispatcherServlet-process-request-intro/#) 。
- `<3.2>` 处，当是 `<2>` 处的情况二时，则调用 `WebUtils#clearErrorRequestAttributes(HttpServletRequest request)` 方法，清理请求中的错误消息属性。为什么会有这一步呢？答案在 `#processHandlerException(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex)` 方法中，会调用 `WebUtils#exposeErrorRequestAttributes(HttpServletRequest request, Throwable ex, String servletName)` 方法，设置请求中的错误消息属性。
- `<4>` 处，TODO 1003 芋艿
- 【拦截器】`<5>` 处，调用 `#triggerAfterCompletion(HttpServletRequest request, HttpServletResponse response, HandlerExecutionChain mappedHandler, Exception ex)` 方法，拦截器的已完成处理，即调用 `HandlerInterceptor#triggerAfterCompletion(HttpServletRequest request, HttpServletResponse response, Exception ex)` 方法。详细解析，见 [《精尽 Spring MVC 源码分析 —— HandlerMapping 组件（二）之 HandlerInterceptor》](http://svip.iocoder.cn/Spring-MVC/HandlerMapping-2-HandlerInterceptor) 。
## 3.4 render
`#render(ModelAndView mv, HttpServletRequest request, HttpServletResponse response)` 方法，渲染 ModelAndView 。代码如下：
```
// DispatcherServlet.java
protected void render(ModelAndView mv, HttpServletRequest request, HttpServletResponse response) throws Exception {
// Determine locale for request and apply it to the response.
// <1> TODO 芋艿 从 request 中获得 Locale 对象，并设置到 response 中
Locale locale = (this.localeResolver != null ? this.localeResolver.resolveLocale(request) : request.getLocale());
response.setLocale(locale);
// 获得 View 对象
View view;
String viewName = mv.getViewName();
// 情况一，使用 viewName 获得 View 对象
if (viewName != null) {
// We need to resolve the view name.
// <2.1> 使用 viewName 获得 View 对象
view = resolveViewName(viewName, mv.getModelInternal(), locale, request);
if (view == null) { // 获取不到，抛出 ServletException 异常
throw new ServletException("Could not resolve view with name '" + mv.getViewName() +
"' in servlet with name '" + getServletName() + "'");
}
// 情况二，直接使用 ModelAndView 对象的 View 对象
} else {
// No need to lookup: the ModelAndView object contains the actual View object.
// 直接使用 ModelAndView 对象的 View 对象
view = mv.getView();
if (view == null) { // 获取不到，抛出 ServletException 异常
throw new ServletException("ModelAndView [" + mv + "] neither contains a view name nor a " +
"View object in servlet with name '" + getServletName() + "'");
}
}
// Delegate to the View object for rendering.
// 打印日志
if (logger.isTraceEnabled()) {
logger.trace("Rendering view [" + view + "] ");
}
try {
// <3> 设置响应的状态码
if (mv.getStatus() != null) {
response.setStatus(mv.getStatus().value());
}
// <4> 渲染页面
view.render(mv.getModelInternal(), request, response);
} catch (Exception ex) {
if (logger.isDebugEnabled()) {
logger.debug("Error rendering view [" + view + "]", ex);
}
throw ex;
}
}
```
- `<1>` 处，调用 `LocaleResolver#resolveLocale(HttpServletRequest request)` 方法，从 `request` 中获得 Locale 对象，并设置到 `response` 中。详细解析，见 TODO 1001
- `<2>` 处，获得 View 对象。分成两种情况，代码比较简单，胖友自己瞅瞅。
- `<2.1>` 处，调用 `#resolveViewName(String viewName, Map model, Locale locale, HttpServletRequest request)` 方法，使用 `viewName` 获得 View 对象。代码如下：
```
// DispatcherServlet.java
@Nullable
protected View resolveViewName(String viewName, @Nullable Map model,
Locale locale, HttpServletRequest request) throws Exception {
if (this.viewResolvers != null) {
// 遍历 ViewResolver 数组
for (ViewResolver viewResolver : this.viewResolvers) {
// 根据 viewName + locale 参数，解析出 View 对象
View view = viewResolver.resolveViewName(viewName, locale);
// 解析成功，直接返回 View 对象
if (view != null) {
return view;
}
}
}
// 返回空
return null;
}
```
- 详细解析，见 [《精尽 Spring MVC 源码解析 —— ViewResolver》](http://svip.iocoder.cn/Spring-MVC/ViewResolver)
- `<3>` 处，设置响应的状态码。
- `<4>` 处，调用 `View#render(Map model, HttpServletRequest request, HttpServletResponse response)` 方法，渲染视图。详细解析，见 [《精尽 Spring MVC 源码解析 —— ViewResolver》](http://svip.iocoder.cn/Spring-MVC/ViewResolver) 。
# 666. 彩蛋
到此，我们已经对 DispatcherServlet 是如何处理请求已经有了整体的认识。当然，我们对每个 Spring MVC 组件，细节暂时没有进行深扣，正如我们在看本文，会有大量的 TODO 。不要方，后面的每一篇，我们会对每个 Spring MVC 组件逐个解析。这样，我们对 Spring MVC 会更加了解。
其实，这也是看源码的套路，先整理，后局部，逐步逐步抽丝剥茧，看清理透。
还有，在看完后续的 Spring MVC 的每个组件后，胖友可以在回过头在重新看看这个文章，是否能够将文章更好的串联在一起。
------
下面，艿艿整理了一些网络上讲述 Spring MVC 处理请求的一些图，帮助我们更好的理解这个过程。
> FROM [《SpringMVC - 运行流程图及原理分析》](https://blog.csdn.net/J080624/article/details/77990164)
>
> **流程示意图**：
>
> [](http://static.iocoder.cn/images/Spring/2022-02-21/01.png)流程示意图
>
> **代码序列图**：
>
> [](http://static.iocoder.cn/images/Spring/2022-02-21/02.png)代码序列图
>
> ------
>
> FROM [《看透 Spring MVC：源代码分析与实践》](https://item.jd.com/11807414.html) P123
>
> **流程示意图**：
>
> [](http://static.iocoder.cn/images/Spring/2022-02-21/03.png)《流程示意图》
------
参考和推荐如下文章：
- 田小波 [《Spring MVC 原理探秘 - 一个请求的旅行过程》](https://www.tianxiaobo.com/2018/06/29/Spring-MVC-原理探秘-一个请求的旅行过程/)
- 郝佳 [《Spring 源码深度解析》](https://item.jd.com/11311737.html) 的 [「11.3 DispatcherServlet」](https://svip.iocoder.cn/Spring-MVC/DispatcherServlet-process-request-intro/#) 小节
- 韩路彪 [《看透 Spring MVC：源代码分析与实践》](https://item.jd.com/11807414.html) 的 [「第10章 Spring MVC 之用」](https://svip.iocoder.cn/Spring-MVC/DispatcherServlet-process-request-intro/#) 小节
